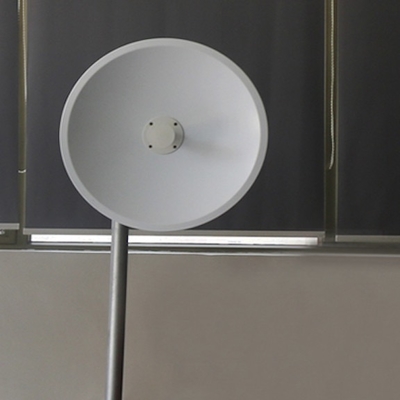

Precision Communication Microwave Parabolic Antenna Efficiently Capture And Direct Signals

Precision Communication Microwave Parabolic Antenna Efficiently Capture And Direct Signals

MOQ: 1 SET
Price: Negotiable
Standard Packaging: Standard export packaging/customizable packaging
Payment Method: T/T , L/C
Detail Information
Place of Origin
China
Brand Name
Famous
Certification
CE,ISO9001
Name:
Microwave Parabolic Antenna
Diameter Of Mounting Pole:
φ51~φ114 Mm
Fine Azimuth Adjustment:
Coarse 360°Fine±15°
Fine Elevation Adjustment:
Coarse±25°Fine±15°
Wind Velocity Operational:
180km/h
Wind Velocity Survival Rating:
250km/h
Ice-load:
25.4 Mm
Operational Temperature:
-55~+70℃
Minimum Order Quantity:
1 SET
Price:
Negotiable
Packaging Details:
Standard export packaging/customizable packaging
Payment Terms:
T/T , L/C
Highlight:

precision communication microwave parabolic antenna

,

efficiently capture signals microwave parabolic antenna

,

efficiently direct signals dual polarized antenna

Product Description

the Microwave Parabolic Antenna represents the epitome of precision communication technology. With its ability to focus signals, high-gain capability, low interference design, robust construction, and versatile applications, this antenna plays a vital role in enabling seamless and reliable wireless communication across the globe.

At the heart of the Microwave Parabolic Antenna is its ability to precisely focus electromagnetic waves. The parabolic reflector efficiently captures and directs signals, ensuring minimal signal loss and maximizing communication range.



Features:

  • Stable gain over ultra-wide bandwidth of 5G and 6G
  • Comes pre-assembled from the factory for quickest time to tower
  • Includes radome ensuring robust and reliable performance under the most challenging condition
  • Optimized F/B & side-lobe suppression minimizes interference
  • Installs in minutes to reduce service calls and installation time
  • Heavy-duty bracket with fine elevation and azimuth adjustment
  • Heavy-duty hardware survives 250Km/h wind speeds

Electrical performance:



Antenna Model

Antenna Size(m/ft)

Frequency (GHz)

Gain(dBi)

3dB BW

(degs)

XPD (dB)

VSWR

F/B radio

(dB)

ISO

Low

Mid

Top

5G30

0.6/2ft

5.0-7.0

30

6

25

1.7

40

30

CMP066WDA

0.6m/2ft

5.925-7.125

29.1

29.9

30.7

5.2

30

1.3

55

35

CMP067WDA

0.6m/2ft

7.125-8.5

30.7

31.5

32.2

4.3

30

1.3

56

35

CMP0610WDA

0.6m/2ft

10.0-11.7

33.6

34.3

35.0

3.0

30

1.3

59

35

CMP0613WDA

0.6m/2ft

12.2-13.25

35.3

35.7

36.1

2.6

30

1.3

60

35

CMP0615DA

0.6m/2ft

14.4-15.35

36.8

37.1

37.4

2.3

30

1.3

62

35

CMP0618DA

0.6m/2ft

17.7-19.7

38.6

39.1

39.5

1.8

30

1.3

64

35

CMP0623DA

0.6m/2ft

21.2-23.6

40.2

40.6

41.1

1.5

30

1.3

65

35

CMP0626DA

0.6m/2ft

24.2-26.5

41.3

41.7

42.1

1.3

30

1.3

67

35

CMP0628DA

0.6m/2ft

27.5-29.5

42.4

42.7

43.0

1.2

30

1.3

68

35

CMP0632DA

0.6m/2ft

31.8-33.4

43.7

43.9

44.1

1.0

30

1.3

69

35

CMP0638DA

0.6m/2ft

37.0-40.0

45.0

45.3

45.7

0.9

30

1.3

70

35





Mechanical performance:



Diameter of Mounting Pole

Φ51~Φ114 mm

Fine Azimuth Adjustment

Coarse 360°  Fine ±15°

Fine Elevation Adjustment

Coarse ±25°  Fine ±15°

Wind Velocity Operational

180km/h

Wind Velocity Survival Rating

250km/h

Ice-load

25.4 mm

Operational Temperature

-55~ +70℃





1.The low/mid/high gain has≤-0.5dBi tolerance is within the normal range;

2.F/B radio:Denotes highest radiation relative to the main beam,at 180°±40°,across the band.Production antennas do not exceed rated values by more than 2 dB unless stated otherwise;
