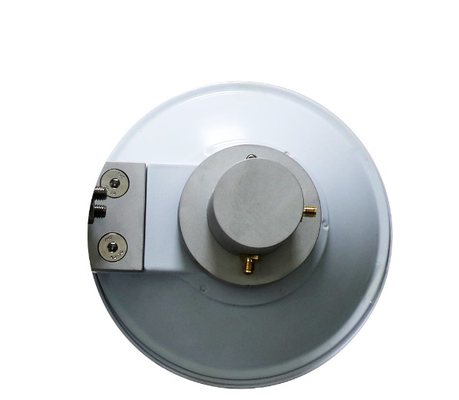

0.2m / 0.7ft Dual Polarized Antenna 40 Ghz

0.2m / 0.7ft Dual Polarized Antenna 40 Ghz

MOQ: 1 SET
Price: Negotiable
Standard Packaging: Standard export packaging/customizable packaging
Payment Method: T/T , L/C
Detail Information
Place of Origin
China
Brand Name
Famous
Certification
CE,ISO9001
Model Number
0.2m/0.7ft Dual-Polarized Antenna
Name:
Microwave Antenna
Diameter Of Mounting Pole:
Φ51~Φ114 Mm
Fine Azimuth Adjustment:
Coarse 360° Fine ±15°
Fine Elevation Adjustment:
Coarse ±25° Fine ±15°
Wind Velocity Operational:
180km/h
Wind Velocity Survival:
250km/h
Ice-load:
25.4 Mm
Operational Temperature:
-55~ +70℃
Minimum Order Quantity:
1 SET
Price:
Negotiable
Packaging Details:
Standard export packaging/customizable packaging
Payment Terms:
T/T , L/C
Highlight:

0.2m dual polarized antenna

,

0.7ft dual polarized antenna

,

dual polarized antenna 40 ghz

Product Description



0.2m/0.7ft Dual-Polarized Antenna


Features:

  • Optimized F/B & side-lobe suppression minimizes interference
  • Quick connect waveguide allows rapid change of polarization and installation
  • Installs in minutes to reduce service calls and installation time
  • Integrated handle / hoisting hook for added safety and convenient installation
  • Heavy-duty bracket with fine elevation and azimuth adjustment beamwidths

Applications:

  • Wireless MIMO LAN systems & IEEE 802.11n applications
  • Point-to-point (PtP) for backhaul or client premise equipment (CPE)
  • High-density deployments requiring frequency reuse to achieve high capacity and data rates
  • Last-mile connection
  •

Electrical performance:


Antenna Model Antenna Size(m/ft) Frequency (GHz) Gain(dBi)

3dB BW

(degs)

XPD (dB) VSWR

F/B radio

(dB)

ISO
Low Mid Top
CMP0213DA 0.2m/0.7ft 12.2-13.25 26.2 26.6 26.9 7.3 30 1.3 52 35
CMP0215DA 0.2m/0.7ft 14.4-15.35 27.4 27.8 28.2 6.5 30 1.3 53 35
CMP0218DA 0.2m/0.7ft 17.7-19.7 29.5 29.9 30.3 5.1 30 1.3 56 35
CMP0223DA 0.2m/0.7ft 21.2-23.6 31.0 31.5 32.0 4.3 30 1.3 57 35
CMP0226DA 0.2m/0.7ft 24.2-26.5 32.2 32.6 33.0 3.8 30 1.3 58 35
CMP0228DA 0.2m/0.7ft 27.5-29.5 33.3 33.6 33.9 3.4 30 1.3 59 35
CMP0232DA 0.2m/0.7ft 31.8-33.4 34.6 34.8 35.0 3.0 30 1.3 60 35
CMP0238DA 0.2m/0.7ft 37.0-40.0 35.9 36.2 36.5 2.5 30 1.3 61 35




Mechanical performance:



Diameter of Mounting Pole Φ51~Φ114 mm
Fine Azimuth Adjustment Coarse 360° Fine ±15°
Fine Elevation Adjustment Coarse ±25° Fine ±15°
Wind Velocity Operational 180km/h
Wind Velocity Survival Rating 250km/h
Ice-load 25.4 mm
Operational Temperature -55~ +70℃

0.2m / 0.7ft Dual Polarized Antenna 40 Ghz 00.2m / 0.7ft Dual Polarized Antenna 40 Ghz 10.2m / 0.7ft Dual Polarized Antenna 40 Ghz 2
