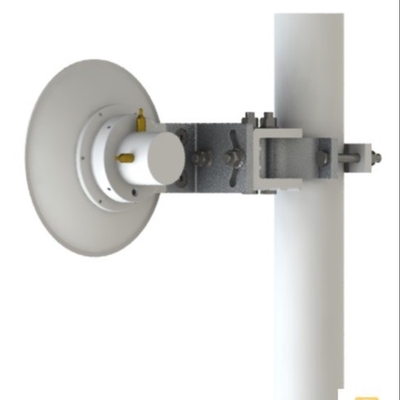

0.2m/0.7ft Dual Polarized Microwave Parabolic Antenna 37 Ghz
  • name
  • name
  • name
  • name

0.2m/0.7ft Dual Polarized Microwave Parabolic Antenna 37 Ghz

MOQ: 1 SET
Price: Negotiable
Standard Packaging: Standard export packaging/customizable packaging
Payment Method: T/T ， L/C
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Famous
Certification
CE，ISO9001
Document
Product Brochure PDF
Minimum Order Quantity:
1 SET
Price:
Negotiable
Packaging Details:
Standard export packaging/customizable packaging
Payment Terms:
T/T ， L/C
Highlight:

0.2m 0.7ft microwave parabolic antenna

,

37 Ghz microwave parabolic antenna

,

37 Ghz dual polarized antenna

Product Description

Features:

  • Optimized F/B & side-lobe suppression minimizes interference
  • Quick connect waveguide allows rapid change of polarization and installation
  • Installs in minutes to reduce service calls and installation time
  • Integrated handle / hoisting hook for added safety and convenient installation
  • Heavy-duty bracket with fine elevation and azimuth adjustment beamwidths

Applications:

  • Wireless MIMO LAN systems & IEEE 802.11n applications
  • Point-to-point (PtP) for backhaul or client premise equipment (CPE)
  • High-density deployments requiring frequency reuse to achieve high capacity and data rates
  • Last-mile connection



Electrical performance:

Antenna Model

Antenna Size(m/ft)

Frequency (GHz)

Gain(dBi)

3dB BW

(degs)

XPD (dB)

VSWR

F/B radio

(dB)

ISO

Low

Mid

Top

CMP0213DA

0.2m/0.7ft

12.2-13.25

26.2

26.6

26.9

7.3

30

1.3

52

35

CMP0215DA

0.2m/0.7ft

14.4-15.35

27.4

27.8

28.2

6.5

30

1.3

53

35

CMP0218DA

0.2m/0.7ft

17.7-19.7

29.5

29.9

30.3

5.1

30

1.3

56

35

CMP0223DA

0.2m/0.7ft

21.2-23.6

31.0

31.5

32.0

4.3

30

1.3

57

35

CMP0226DA

0.2m/0.7ft

24.2-26.5

32.2

32.6

33.0

3.8

30

1.3

58

35

CMP0228DA

0.2m/0.7ft

27.5-29.5

33.3

33.6

33.9

3.4

30

1.3

59

35

CMP0232DA

0.2m/0.7ft

31.8-33.4

34.6

34.8

35.0

3.0

30

1.3

60

35

CMP0238DA

0.2m/0.7ft

37.0-40.0

35.9

36.2

36.5

2.5

30

1.3

61

35


Mechanical performance:



Diameter of Mounting Pole

Φ51~Φ114 mm

Fine Azimuth Adjustment

Coarse 360°  Fine ±15°

Fine Elevation Adjustment

Coarse ±25°  Fine ±15°

Wind Velocity Operational

180km/h

Wind Velocity Survival Rating

250km/h

Ice-load

25.4 mm

Operational Temperature

-55~ +70℃


Tags:

0.7ft dual polarized antenna,

long range transmission microwave parabolic antenna,

13.25 Ghz microwave parabolic antenna
