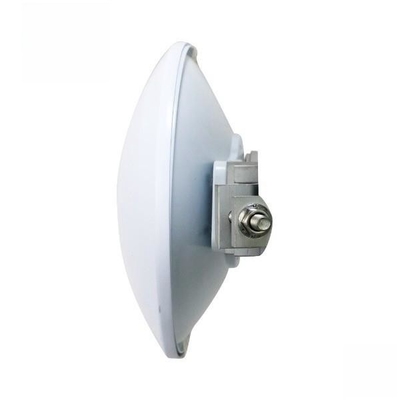

0.3m/1ft Standard Dual Polarized Antenna Microwave Parabolic Antenna 31.8 Ghz

Name: 0.3m/1ft Standard Dual Polarized Antenna Microwave Parabolic Antenna 31.8 Ghz
Brand: Famous
SKU: Microwave Parabolic Antenna
Rating: 4.6 (132 reviews)

MOQ:	1 SET
Price:	Negotiable
Standard Packaging:	Standard export packaging/customizable packaging
Payment Method:	T/T ， L/C

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Famous

Certification

CE，ISO9001

Model Number

Microwave Parabolic Antenna

Document

Product Brochure PDF

Name:

Microwave Parabolic Antenna

Diameter Of Mounting Pole:

φ51~φ114 Mm

Fine Azimuth Adjustment:

Coarse 360°Fine±15°

Fine Elevation Adjustment:

Coarse±25°Fine±15°

Wind Velocity Operational:

180km/h

Wind Velocity Survival Rating:

250km/h

Ice-load:

25.4 Mm

Operational Temperature:

-55~+70℃

Minimum Order Quantity:

1 SET

Price:

Negotiable

Packaging Details:

Standard export packaging/customizable packaging

Payment Terms:

T/T ， L/C

Highlight:

31.8 ghz parabolic antenna 0.3m

31.8 ghz parabolic antenna 1ft

31.8 ghz dual polarized antenna

Product Description

0.3m/1ft Standard Dual-Polarized Antenna

Features:

Optimized F/B & side-lobe suppression minimizes interference
Quick connect waveguide allows rapid change of polarization and installation
Installs in minutes to reduce service calls and installation time
Integrated handle / hoisting hook for added safety and convenient installation
Heavy-duty bracket with fine elevation and azimuth adjustment beamwidths

Applications:

Wireless MIMO LAN systems & IEEE 802.11n applications
Point-to-point (PtP) for backhaul or client premise equipment (CPE)
High-density deployments requiring frequency reuse to achieve high capacity and data rates
Last-mile connection

Electrical performance:

Antenna Model	Antenna Size(m/ft)	Frequency (GHz)	Gain(dBi)			3dB BW (degs)	XPD (dB)	VSWR	F/B radio (dB)	ISO
Antenna Model	Antenna Size(m/ft)	Frequency (GHz)	Low	Mid	Top	3dB BW (degs)	XPD (dB)	VSWR	F/B radio (dB)	ISO
5G24	0.3m/1ft	5.0-7.0	24			9	25	1.7	35	30
CMP0310WDA	0.3m/1ft	10.0-11.7	28.6	29.3	30.1	5.3	30	1.3	54	35
CMP0313WDA	0.3m/1ft	12.2-13.25	30.3	30.6	31.0	4.4	30	1.3	56	35
CMP0315DA	0.3m/1ft	14.4-15.35	31.9	32.2	32.5	4.0	30	1.3	57	35
CMP0318DA	0.3m/1ft	17.7-19.7	33.7	34.2	34.7	3.1	30	1.3	59	35
CMP0323DA	0.3m/1ft	21.2-23.6	35.3	3.8	36.2	2.6	30	1.3	61	35
CMP0326DA	0.3m/1ft	24.2-26.5	36.5	36.9	37.2	2.3	30	1.3	62	35
CMP0328DA	0.3m/1ft	27.5-29.5	37.6	37.9	38.2	2.0	30	1.3	63	35
CMP0332DA	0.3m/1ft	31.8-33.4	38.8	39.0	39.3	1.8	30	1.3	64	35
CMP0338DA	0.3m/1ft	37.0-40.0	40.1	40.5	40.8	1.5	30	1.3	66	35

Mechanical performance:

Diameter of Mounting Pole	Φ51~Φ114 mm
Fine Azimuth Adjustment	Coarse 360° Fine ±15°
Fine Elevation Adjustment	Coarse ±25° Fine ±15°
Wind Velocity Operational	180km/h
Wind Velocity Survival Rating	250km/h
Ice-load	25.4 mm
Operational Temperature	-55~ +70℃

1.The low/mid/high gain has≤-0.5dBi tolerance is within the normal range;

2.F/Bradio:Denotes highest radiation relative to the main beam,at 180°±40°,across the band.Production antennas do not exceed rated values by more than 2 dB unless stated otherwise;
