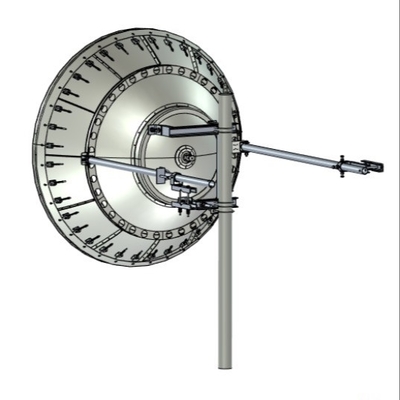

1.8m / 6ft Class 3 Dual Polarized Antenna 5.925 Ghz

1.8m / 6ft Class 3 Dual Polarized Antenna 5.925 Ghz

MOQ: 1 SET
Price: Negotiable
Standard Packaging: Standard export packaging/customizable packaging
Payment Method: T/T , L/C
Detail Information
Place of Origin
China
Brand Name
Famous
Certification
CE,ISO9001
Minimum Order Quantity:
1 SET
Price:
Negotiable
Packaging Details:
Standard export packaging/customizable packaging
Payment Terms:
T/T , L/C
Highlight:

1.8m dual polarized antenna

,

6ft dual polarized antenna

,

5.925 Ghz Microwave Parabolic Antenna

Product Description



1.8m/6ft Class3 Dual-Polarized Antenna



- Our patent split-lobe microwave communication parabolic antenna for large diameter, which can save packaging and transportation costs greatly without any quality compromised;

- High Performance ETSI Class 3 Parabolic Antennas with exceptional front/back ratio – Excellent performance for a wide range of applications;

- Simple Assembly – Minimal required assembly simplifies installation on site and guarantees “factory-tested” quality;



Electrical performance:



1.8m/6ft ultra high XPD performancedual-polarized microwave parabolic antenna specification



Antenna Model

Antenna Size (m/ft)

Frequency (GHz)

Gain(dBi)

3dB BW

(degs)

XPD (dB)

VSWR

F/B radio

(dB)

ISO

Low

Mid

Top

CMP183DC

1.8m/6ft

3.6-4.2

33.8

34.8

35.3

3.1

40

1.15

60

45

CMP184DC

1.8m/6ft

4.4-5.0

35.7

36.3

36.8

2.6

40

1.15

61

45

CMP186WDC

1.8m/6ft

5.925-7.125

38.4

39.4

39.8

1.8

40

1.1

65

45

CMP187WDC

1.8m/6ft

7.125-8.5

40.0

40.8

41.5

1.5

40

1.1

66

45

CMP1810WDC

1.8m/6ft

10-11.7

43.0

43.7

44.3

1.1

40

1.1

69

45

CMP1813WDC

1.8m/6ft

12.2-13.25

45.0

45.2

45.3

0.9

40

1.1

70

45

CMP1815DC

1.8m/6ft

14.4-15.35

46.1

46.3

46.6

0.8

40

1.1

71

45



1.8m/6ft high XPD performancedual-polarized microwave parabolic antenna specification



Antenna Model

Antenna Size (m/ft)

Frequency (GHz)

Gain(dBi)

3dB BW

(degs)

XPD (dB)

VSWR

F/B radio

(dB)

ISO

Low

Mid

Top

CMP183DB

1.8m/6ft

3.6-4.2

33.8

34.8

35.3

3.1

33

1.15

60

38

CMP184DB

1.8m/6ft

4.4-5.0

35.7

36.3

36.8

2.6

33

1.15

61

38

CMP186WDB

1.8m/6ft

5.925-7.125

38.4

39.4

39.8

1.8

33

1.1

65

38

CMP187WDB

1.8m/6ft

7.125-8.5

40.0

40.8

41.5

1.5

33

1.1

66

38

CMP1810WDB

1.8m/6ft

10-11.7

43.0

43.7

44.3

1.1

33

1.1

69

38

CMP1813WDB

1.8m/6ft

12.2-13.25

45.0

45.2

45.3

0.9

33

1.1

70

38

CMP1815DB

1.8m/6ft

14.4-15.35

46.1

46.3

46.6

0.8

33

1.1

71

38



1.8m/6ft standard performancedual-polarizedmicrowave parabolic antenna specification



Antenna Model

Antenna Size (m/ft)

Frequency (GHz)

Gain(dBi)

3dB BW

(degs)

XPD (dB)

VSWR

F/B radio

(dB)

ISO

Low

Mid

Top

CMP183DA

1.8m/6ft

3.6-4.2

33.8

34.8

35.3

3.1

30

1.15

60

35

CMP184DA

1.8m/6ft

4.4-5.0

35.7

36.3

36.8

2.6

30

1.15

61

35

CMP186WDA

1.8m/6ft

5.925-7.125

38.4

39.4

39.8

1.8

30

1.1

65

35

CMP187WDA

1.8m/6ft

7.125-8.5

40.0

40.8

41.5

1.5

30

1.1

66

35

CMP1810WDA

1.8m/6ft

10-11.7

43.0

43.7

44.3

1.1

30

1.1

69

35

CMP1813WDA

1.8m/6ft

12.2-13.25

45.0

45.2

45.3

0.9

30

1.1

70

35

CMP1815DA

1.8m/6ft

14.4-15.35

46.1

46.3

46.6

0.8

30

1.1

71

35



Mechanical performance



Diameter of Mounting Pole



Φ114 mm

Fine Azimuth Adjustment

Coarse 360°  Fine ±5°

Fine Elevation Adjustment

Fine ±5°

Wind Velocity Operational

180km/h

Wind Velocity Survival

200km/h

Ice-load

25.4 mm

Operational Temperature

-55~ +70℃





1.The low/mid/high gain has≤-0.5dBi tolerance is within the normal range;

2.F/Bradio:Denotes highest radiation relative to the main beam,at 180°±40°,across the band.Production antennas do not exceed rated values by more than 2 dB unless stated otherwise;
