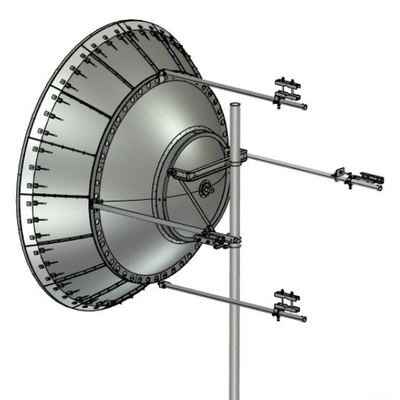

2.4m / 8ft Class 3 Microwave Parabolic Antenna Dual Polarized 7.125 Ghz

2.4m / 8ft Class 3 Microwave Parabolic Antenna Dual Polarized 7.125 Ghz

MOQ: 1 SET
Price: Negotiable
Standard Packaging: Standard export packaging/customizable packaging
Payment Method: T/T , L/C
Detail Information
Place of Origin
China
Brand Name
Famous
Certification
CE,ISO9001
Minimum Order Quantity:
1 SET
Price:
Negotiable
Packaging Details:
Standard export packaging/customizable packaging
Payment Terms:
T/T , L/C
Highlight:

2.4 m microwave parabolic antenna

,

8 ft microwave parabolic antenna

,

7.125 Ghz dual parabolic antenna

Product Description



2.4m/8ft Class3 Dual-Polarized Antenna



- Our patent split-lobe microwave communication parabolic antenna for large diameter, which can save packaging and transportation costs greatly without any quality compromised;

- High Performance ETSI Class 3 & US FCC 101 compliance parabolic antennas with exceptional front/back ratio – Excellent performance for a wide range of applications;

- Simple Assembly – Minimal required assembly simplifies installation on site and guarantees “factory-tested” quality;





Electrical performance:



2.4m/8ft ultra high XPD dual-polarized microwave parabolic antenna specification



Antenna Model

Antenna Size(m/ft)

Frequency (GHz)

Gain(dBi)

3dB BW

(degs)

XPD (dB)

VSWR

F/B radio

(dB)

ISO

Low

Mid

Top

CMP243DC

2.4m/8ft

3.6-4.2

36.1

37.3

38

2.4

40

1.15

62

45

CMP244DC

2.4m/8ft

4.4-5.0

38.0

38.8

39.3

2.0

40

1.15

63

45

CMP246WDC

2.4m/8ft

5.925-7.125

40.8

41.7

42.5

1.4

40

1.1

67

45

CMP247WDC

2.4m/8ft

7.125-8.5

42.5

43.3

44.0

1.1

40

1.1

69

45

CMP2410WDC

2.4m/8ft

10-11.7

45.5

46.1

46.8

0.8

40

1.1

71

45

CMP2413WDC

2.4m/8ft

12.2-13.25

47.5

47.7

47.9

0.7

40

1.1

72

45

CMP2415DC

2.4m/8ft

14.4-15.35

48.6

48.8

49.1

0.6

40

1.1

74

45





2.4m/8ft high XPD dual-polarized microwave parabolic antenna specification



Antenna Model

Antenna Size(m/ft)

Frequency (GHz)

Gain(dBi)

3dB BW

(degs)

XPD (dB)

VSWR

F/B radio

(dB)

ISO

Low

Mid

Top

CMP243DB

2.4m/8ft

3.6-4.2

36.1

37.3

38

2.4

33

1.15

62

38

CMP244DB

2.4m/8ft

4.4-5.0

38.0

38.8

39.3

2.0

33

1.15

63

38

CMP246WDB

2.4m/8ft

5.925-7.125

40.8

41.7

42.5

1.4

33

1.1

67

38

CMP247WDB

2.4m/8ft

7.125-8.5

42.5

43.3

44.0

1.1

33

1.1

69

38

CMP2410WDB

2.4m/8ft

10-11.7

45.5

46.1

46.8

0.8

33

1.1

71

38

CMP2413WDB

2.4m/8ft

12.2-13.25

47.5

47.7

47.9

0.7

33

1.1

72

38

CMP2415DB

2.4m/8ft

14.4-15.35

48.6

48.8

49.1

0.6

33

1.1

74

38



2.4m/8ft standard dual-polarizedmicrowave parabolic antenna specification



Antenna Model

Antenna Size(m/ft)

Frequency (GHz)

Gain(dBi)

3dB BW

(degs)

XPD (dB)

VSWR

F/B radio

(dB)

ISO

Low

Mid

Top

CMP243DA

2.4m/8ft

3.6-4.2

36.1

37.3

38

2.4

30

1.15

62

35

CMP244DA

2.4m/8ft

4.4-5.0

38.0

38.8

39.3

2.0

30

1.15

63

35

CMP246WDA

2.4m/8ft

5.925-7.125

40.8

41.7

42.5

1.4

30

1.1

67

35

CMP247WDA

2.4m/8ft

7.125-8.5

42.5

43.3

44.0

1.1

30

1.1

69

35

CMP2410WDA

2.4m/8ft

10-11.7

45.5

46.1

46.8

0.8

30

1.1

71

35

CMP2413WDA

2.4m/8ft

12.2-13.25

47.5

47.7

47.9

0.7

30

1.1

72

35

CMP2415DA

2.4m/8ft

14.4-15.35

48.6

48.8

49.1

0.6

30

1.1

74

35



Mechanical performance:



Diameter of Mounting Pole

Φ114 mm

Fine Azimuth Adjustment

Coarse 360°

Fine ±5°

Fine Elevation Adjustment

Fine ±5°

Wind Velocity Operational

180km/h

Wind Velocity Survival

200km/h

Ice-load

25.4 mm

Operational Temperature

-55~ +70℃



1.The low/mid/high gain has≤-0.5dBi tolerance is within the normal range;

2.F/Bradio:Denotes highest radiation relative to the main beam,at 180°±40°,across the band.Production antennas do not exceed rated values by more than 2 dB unless stated otherwise;
