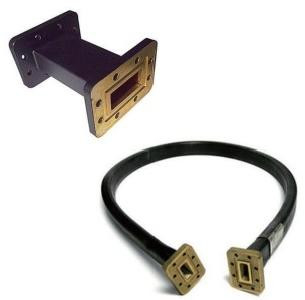

Twist Flex Waveguid Accessories For Microwave Antennas

MOQ: 1 SET
Price: Negotiable
Standard Packaging: Standard export packaging/customizable packaging
Payment Method: T/T ， L/C
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Famous
Certification
CE，ISO9001
Model Number
Twist-Flex Waveguid
Document
Product Brochure PDF
Name:
Twist-Flex Waveguid
Minimum Order Quantity:
1 SET
Price:
Negotiable
Packaging Details:
Standard export packaging/customizable packaging
Payment Terms:
T/T ， L/C
Highlight:

Twist Flex Waveguid For Microwave Antennas

,

Accessories For Microwave Antennas

,

Parts For Microwave Antennas

Product Description



Construction



·Inner:Brass

·Outer:Silicone/S-7



Features



·Low VSWR,Low loss

·Good flexible and twistable







·Stabile capability during flexing and twisting





Application



·Microwave relay,Broadcast







lype



Freg



Flange



VSWR



nsertion loss

  Peak Power



Dimensions



Weight

 (mm) Min Bend Radius
  GHz   Max dB/100m Kw mm Kg/m E弯 H弯
BRA58 WR159 4.90~7.05 1.10 0.22 2.5 40.39×20.19 170 129 258
BRA70 WR137 5.85~8.20 1.10 0.25 2.0 34.85×15.80 205 100 200
    5.850~6.425 6.425~7.125 7.125~7.725 7.725~8.200

1.06

1.06

1.06

1.06


BRA84 WR112 7.05~10.00 1.10 0.30 1.5 28.50×12.62 262 76 152
    7.125~7.725 7.725~8.500

1.06

1.06


BRA100 WR90 8.20~12.40 1.10 0.40 1 22.86×10.16 308 66 132
    10.70~11.70 1.06
BRA120 WR75 10.0~15.0 1.15 0.50 0.75 19.05×9.53 360 63 126
    12.75~13.25 13.75~14.50

1.10

1.10


BRA140 WR62 12.4~18.0 1.15 0.80 0.4 15.80×7.90 436 56 112
    12.70~13.25 14.25~15.35

1.10

1.10


BRA180 WR51 15.0~22.0 1.15 1.10 0.2 12.95×6.48 445 50 100
BRA220 WR42 17.7~26.5 1.20 1.20 0.1 10.67×4.32 510 38 76
    21.2~23.6 1.15
BRA260 WR34 22.0~33.0 1.20 1.50 0.1 8.64×4.32 510 35 70
BRA320 WR28 26.5~40.0 1.20 2.00 0.075 7.11×3.56 510 20 40
BRA400 WR22 40.5~43.5 1.30 2.70 0.025 5.69×2.85 510 18 36

 Twist Flex Waveguid Accessories For Microwave Antennas 0Twist Flex Waveguid Accessories For Microwave Antennas 1
