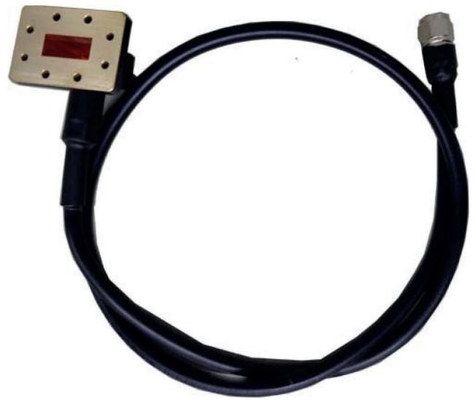

Waveguide Cable Waveguide To Coaxial Microwave Antenna Accessories

Waveguide Cable Waveguide To Coaxial Microwave Antenna Accessories

MOQ: 1 SET
Price: Negotiable
Standard Packaging: Standard export packaging/customizable packaging
Payment Method: T/T , L/C
Detail Information
Place of Origin
China
Brand Name
Famous
Certification
CE,ISO9001
Model Number
Waveguide-Cable
Name:
Waveguide Cable
Minimum Order Quantity:
1 SET
Price:
Negotiable
Packaging Details:
Standard export packaging/customizable packaging
Payment Terms:
T/T , L/C
Highlight:

Waveguide To Coaxial microwave antenna accessories

,

Waveguide Cable microwave antenna accessories

,

Microwave Waveguide Cable Waveguide To Coaxial

Product Description

Flexible Waveguide
Flexible waveguides are specialized transmission lines used in microwave systems to route electromagnetic waves between components. They offer the versatility to bend around obstacles without significant signal loss, making them ideal for complex installations where rigid waveguides cannot be used. These flexible sections are essential for customizing microwave system layouts, ensuring optimal performance and reliability in a variety of applications, including telecommunications, radar, and satellite systems.



Key Features
Versatile Waveguide Sizes: Accommodates a wide range of system requirements with sizes from WRD84 to WRD180.
Extended Length Options: Offers lengths up to 600mm, providing ample flexibility for custom system configurations.
Low VSWR: Features a Voltage Standing Wave Ratio (VSWR) of 1.3, ensuring minimal signal reflection and loss.
Twistable and Non-Twistable Types: Available in both flexible twistable and non-twistable designs to suit various installation needs.
High Power Handling: Engineered to manage high power levels, suitable for demanding microwave applications.
Customizable Flange Options: Provides cover and grooved flange designs, enhancing mechanical compatibility and ease of integration.
Rapid Delivery: Guarantees quick delivery times, meeting the urgent needs of modern microwave communication projects.



Application Areas
Telecommunications: Enhances the layout flexibility of cellular base stations, repeaters, and broadcasting equipment.
Radar Systems: Facilitates precise and efficient signal routing in air traffic control, maritime, and weather radar installations.
Satellite Communication: Enables adaptable connection solutions for ground stations and satellite uplinks/downlinks.
Research and Development: Supports experimental setups in laboratories, allowing for versatile system design and modification.
Military and Defense: Provides robust and flexible signal routing options for mobile communication units and electronic warfare systems.





Freg



nterface1



Interface2



ength



VSWR



Insertion Loss

 Peak Power  Min Bend Radlus
MHz     mm Max dB Kw mm



5.9~7.1



BJ70



N



1200



1.30



1.20



30



100



7.1~10.0



BJ84



N



1200



1.30



1.20



30



100



7.1~10.0



BJ84



N



900



1.30



0.90



30



100



X-Band

Non-standard



SMA



150



1.20



0.50



30



30
