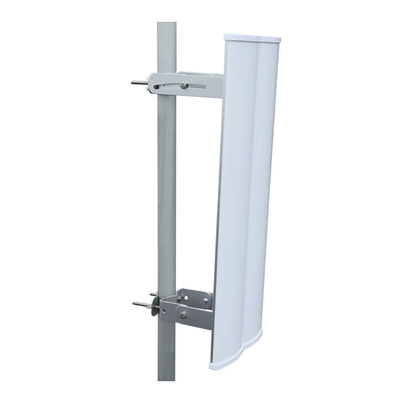

5ghz 4x4 Mimo Sector Antenna Double Dual Slant

5ghz 4x4 Mimo Sector Antenna Double Dual Slant

Detail Information
Highlight:

5ghz mimo sector antenna

,

4x4 mimo sector antenna

,

double dual slant mimo sector antenna

Product Description
Electrical
Model
ANT4959D19A-60XXP
Frequency Range
4.9-5.9GHz
Gain
19dBi
Polarization
Double Dual Slant, ± 45º
- 3.0dB Azimuth Beam width
60º typ
- 3.0dB Elevation Beam width
4º typ
Front-To-Back Ratio
-25 db typ
Port To Port Isolation
20 dB typ
Cross Polarization
20 dB typ
VSWR
<1.5 typ
Maximum Power Per Port
20 watts
Impedance
50 ohms
Lightning Protection
DC ground
Mechanical
Dimensions, H x W x D
700*260*30mm
Weight
5kg
Radome Material and Color
UV Stabilized ABS plastic, white
Reflector Material
Aluminum
Connector Type and Location
4 x N- Female
Operational Temperature
-45°C to 65°C
Mechanical Downtilt
-10° to +3°
Survival Wind Speed
125mph (201kph)
