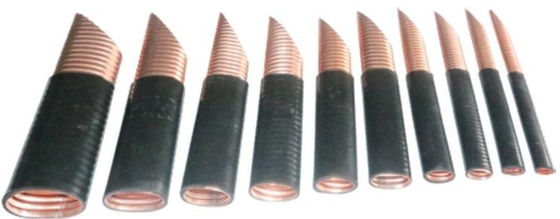

BT24R Elliptical Waveguide In Radar Satellite Earth Stations

BT24R Elliptical Waveguide In Radar Satellite Earth Stations

MOQ: 1 SET
Price: Negotiable
Standard Packaging: Standard export packaging/customizable packaging
Payment Method: T/T , L/C
Detail Information
Place of Origin
China
Brand Name
Famous
Certification
CE,ISO9001
Model Number
Elliptical Waveguide
Features:
Low VSWR,Low Loss
Name:
Elliptical Waveguide
Inner:
Brass
Outer:
Black PE
Application:
Radar,Satellite Earth Stations
Minimum Order Quantity:
1 SET
Price:
Negotiable
Packaging Details:
Standard export packaging/customizable packaging
Payment Terms:
T/T , L/C
Highlight:

BT24R Elliptical Waveguide

,

Radar Elliptical Waveguide

,

Satellite Earth Stations Elliptical Waveguide

Product Description



Iype



Freg

 Flange



VSWR



Insertion loss

 Peak Power



Dimensions



Weight

(mm) Min Bend Radius
  GHz   Max dB/100m Kw mm Kg/m E  H
BT24R 2.2~3.1 BJ32 1.20

2.0(2.2G)

1.8(3.1G

550 100.5×63.5 2.6 800 2000
BT26 2.5~2.7

N-K50

IF45

1.25

2.8(2.5G)

2.3(2.7G)

460 108.4×61.3 2.5 600 1500
BT38 3.4~4.2 BJ40 1.15

3.6(3.4G)

2.6(4.2G)

310 82.6×47.4 1.7 340 840
BT48 4.4~5.0 BJ48 1.15

4.7(4.4G)

3.8(5.0G

190 72×42 1.4 300 750
BT54 5.0~6.0

BJ48

BJ58

1.15

5.3(5.0G

4.3(6.0G)

150 58.5×38 1.0 240 580
BTX62 5.85~7.125 BJ70 1.15

5.2(5.9G)

4.5(7.1G

102 52×30 0.85 220 550
  5.85~6.425   1.10
  6.425~7.125   1.10
BTX80 7.125 ~8.5 / 1.15

6.3(7.1G)

5.6(8.5G)

60 44.8×27.6 0.72 200 520
  7.125~7.725 BJ70 1.10
  7.725~8.5 BJ84 1.10
BT90 8.5~10.0

BJ84

BJ100

1.15

11.2(8.6G

9.5(10.0G

40 34×24 0.6 160 350
BT110 10.7~11.7 BJ100 1.15 10.3(10.7G) 9.8(11.7G) 35 33×21 0.5 150 300
BT120 10.95~12.75 BJ120 1.15 10.8(10.95G) 10.5(12.75G) 35 29×15 0.4 150 300
BT148 14.00~15.35

BJ120

BJ140

1.20 16.5(14.0G) 15.5(15.4G) 20 25.3×16 0.34 150 30
BT188 17.7~19.7

BJ140

BJ220

1.25 20.5(17.7G 19.0(19.7G) 7 23.6×16.1 0.22 150 300
