Product Description

Features and Benefits

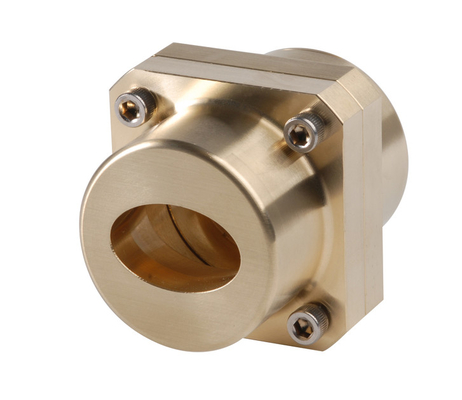

Waveguide connectors are tapered through multistep transitions that adjust their shape in stages from elliptical to the rectangular shape of industry-standard waveguide flanges. Each connector has a pressure inlet to allow the connection of pressurization equipment. Made of brass to provide long service life and compatibility with metals used in the waveguide itself.



Offered connector types:
Fixed-tuned waveguide connectors
Waveguide splices



Product Classification

Product Type Elliptical waveguide splice kit

General Specifications

Attachment Method Tab-flare | Tool-flare
Body Style Splice
Inner Contact Plating Unplated
Interface Splice
Outer Contact Plating Unplated
Pressurizable Yes



Electrical Specifications

Insertion Loss, typical 0.01 dB
Operating Frequency Band 10.2 – 11.7 GHz | 7.125 – 7.75 GHz | 6.425 – 7.75 GHz | 5.925 – 7.125 GHz | 5.725 – 7.125 GHz | 5.6 – 6.425 GHz | 5.0 – 6.425 GHz | 7.125 – 8.5 GHz | 4.4 – 5.0 GHz | 21.2 – 23.6 GHz | 17.7 – 19.7 GHz | 14.0 – 15.35 GHz | 13.75 – 14.50 GHz | 11.7 – 13.25 GHz | 10.7 – 11.7 GHz | 3.4 – 4.2 GHz | 8.5 – 9.8 GHz

Material Specifications

Material Type Brass

Environmental Specifications

Operating Temperature -55 °C to +85 °C (-67 °F to +185 °F)
Storage Temperature -55 °C to +85 °C (-67 °F to +185 °F)
