Fixed Tuned Brass Elliptical Waveguide Connector Long Service Life

Products

Fixed Tuned Brass Elliptical Waveguide Connector Long Service Life

Name: Fixed Tuned Brass Elliptical Waveguide Connector Long Service Life
Brand: Famous
SKU: Waveguide Connectors
Rating: 4.8 (111 reviews)

MOQ:	1 SET
Price:	Negotiable
Standard Packaging:	Standard export packaging/customizable packaging
Payment Method:	T/T ， L/C

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Famous

Certification

CE，ISO9001

Model Number

Waveguide Connectors

Document

Product Brochure PDF

Name:

Waveguide Connectors

Minimum Order Quantity:

1 SET

Price:

Negotiable

Packaging Details:

Standard export packaging/customizable packaging

Payment Terms:

T/T ， L/C

Highlight:

Fixed Tuned Elliptical Waveguide Connector

Brass Elliptical Waveguide Connector

Long Service Life Elliptical Waveguide Connector

Product Description

Features and Benefits

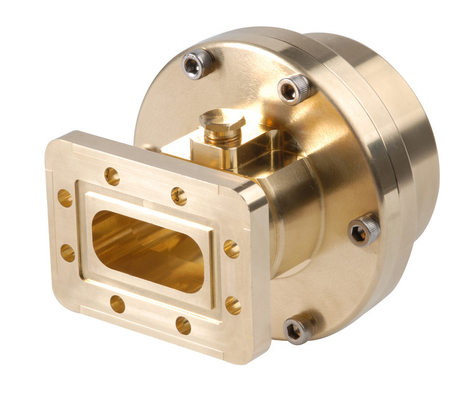

Waveguide connectors are tapered through multistep transitions that adjust their shape in stages from elliptical to the rectangular shape of industry-standard waveguide flanges. Each connector has a pressure inlet to allow the connection of pressurization equipment. Made of brass to provide long service life and compatibility with metals used in the waveguide itself.

Offered connector types:
Fixed tuned waveguide connectors
Waveguide splices

Product Classification

Product Type

Elliptical waveguide connector

General Specifications

Attachment Method	Tab-flare \| Tool-flare
Body Style	Straight, fixed-tuned \| Straight, non-tunable
Inner Contact Plating	Unplated
Interface	CPR112G \| CPR137G \| CPR159G \| CPR187G \| CPR229G \| CPR90G \| PBR100 \| PBR120 \| PBR140 \| PBR220 \| PBR320 \| PBR48 \| PBR70 \| PBR84 \| PDR100 \| PDR120 \| PDR140 \| PDR180 \| PDR40 \| PDR48 \| PDR70 \| PDR84 \| UG-149/U \| UG-344/U \| UG-39/U \| UG-51/U \| UG-541/U \| UG-595/U \| WR75 Cover
Outer Contact Plating	Unplated
Pressurizable	Yes

Dimensions

Waveguide Size

WR112 | WG15 | R84 | WR137 | WG14 | R70 | WR159 | WG13 | R58 | WR187 | WG12 | R48 | WR229 | WG11 | R40 | WR42 | WG20 | R220 | WR51 | WG19 | R180 | WR62 | WG18 | R140 | WR75 | WG17 | R120 | WR90 | WG16 | R100

Electrical Specifications

Insertion Loss, typical	0.01 dB
Operating Frequency Band	10.2 – 11.7 GHz \| 7.125 – 7.75 GHz \| 6.425 – 7.75 GHz \| 5.925 – 7.125 GHz \| 5.725 – 7.125 GHz \| 5.6 – 6.425 GHz \| 5.0 – 6.425 GHz \| 7.125 – 8.5 GHz \| 4.4 – 5.0 GHz \| 21.2 – 23.6 GHz \| 17.7 – 19.7 GHz \| 14.0 – 15.35 GHz \| 13.75 – 14.50 GHz \| 11.7 – 13.25 GHz \| 10.7 – 11.7 GHz \| 3.4 – 4.2 GHz \| 8.5 – 9.8 GHz

Material Specifications

Material Type

Brass

Environmental Specifications

Operating Temperature	-55 °C to +85 °C (-67 °F to +185 °F)
Storage Temperature	-55 °C to +85 °C (-67 °F to +185 °F)
