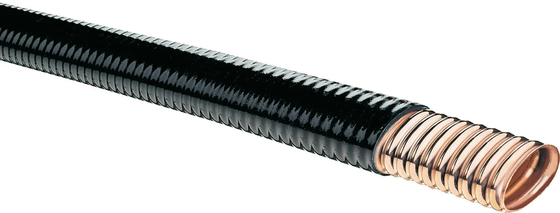

Premium Elliptical Waveguide Brass Inner Black PE Outer
  • name

Premium Elliptical Waveguide Brass Inner Black PE Outer

MOQ: 1 SET
Price: Negotiable
Standard Packaging: Standard export packaging/customizable packaging
Payment Method: T/T ， L/C
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Famous
Certification
CE，ISO9001
Model Number
Elliptical Waveguide
Document
Product Brochure PDF
Features:
Low VSWR,Low Loss
Name:
Elliptical Waveguide
Inner:
Brass
Outer:
Black PE
Application:
Radar,Satellite Earth Stations
Minimum Order Quantity:
1 SET
Price:
Negotiable
Packaging Details:
Standard export packaging/customizable packaging
Payment Terms:
T/T ， L/C
Highlight:

Premium Elliptical Waveguide

,

Brass Inner Elliptical Waveguide

,

Black PE Outer Elliptical Waveguide

Product Description

Features and Benefits


We offers a complete selection of microwave connectivity accessories to optimize your backhaul installation and performance.

Elliptical waveguides are the recommended transmission lines for microwave systems operating between 1.7 GHz and 23.6 GHz, with an elliptical cross section ideal for minimizing VSWR and eliminating signal distortion. Optimized for the lowest loss in significant user bands, with significantly lower attenuation than standard rectangular waveguide, which provides efficient signal transfer and optimum system performance.





Applications


Dolph Microwave’s elliptical waveguide and transition solutions are indispensable in a multitude of settings:



Telecommunications: Enhancing signal transmission in cellular and broadband networks.


Radar Systems: Providing reliable signal pathways in air traffic control and maritime navigation.


Satellite Communications: Ensuring clear and stable connections for satellite uplink and downlink.


Research and Development: Supporting cutting-edge scientific research requiring precise microwave transmission.


Military Applications: Offering durable and reliable communication lines in various defense systems.




Elliptical Waveguide







Construction



·Inner:Brass

·Outer:Black PE



Features

·Low VSWR,Low loss

·Long length transport and install







·Good flexible

·Corrosion resistance,Radiation



Application

·Radar,Satellite earth stations

·Microwave relay,Broadcast



Environmental Specifications

Attenuation, Ambient Temperature 23.886 °C | 75 °F
Average Power, Ambient Temperature 39.996 °C | 104 °F
Average Power, Temperature Rise 5.555 °C | 42 °F
