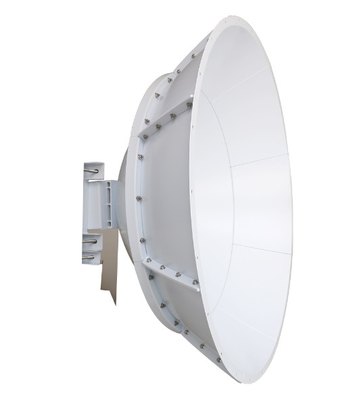

1.2m UHXP Dual Polarized Microwave Parabolic Antenna

1.2m UHXP Dual Polarized Microwave Parabolic Antenna

MOQ: 1 SET
Price: Negotiable
Standard Packaging: Standard export packaging/customizable packaging
Payment Method: T/T , L/C
Detail Information
Place of Origin
China
Brand Name
Famous
Certification
CE,ISO9001
Model Number
XPD Antenna
Name:
Microwave Antenna
Diameter Of Mounting Pole:
Φ114 Mm
Fine Azimuth Adjustment:
Coarse 360° Fine ±15°
Fine Elevation Adjustment:
Fine ±10°
Wind Velocity Operational:
180km/h
Wind Velocity Survival:
200km/h
Ice-load:
25.4 Mm
Operational Temperature:
-55~ +70℃
Minimum Order Quantity:
1 SET
Price:
Negotiable
Packaging Details:
Standard export packaging/customizable packaging
Payment Terms:
T/T , L/C
Highlight:

1.2m Dual Parabolic Antenna

,

UHXP Dual Parabolic Antenna

,

UHXP Microwave Parabolic Antenna

Product Description

1.2m UHXP Dual-Polarized Microwave Parabolic Antenna


  • Our patent split-lobe microwave communication parabolic antenna for large diameter, which can save packaging and transportation costs greatly without any quality compromised;
  •  High performance ultra high XPD parabolic antennas – Excellent performance for a wide range of applications;
  • Simple Assembly – Minimal required assembly simplifies installation on site and guarantees “factory-tested” quality;



Electrical performance:



Antenna Model Antenna Size(m) Frequency (GHz) Gain(dBi)

3dB BW

(degs)

XPD (dB) VSWR

F/B radio

(dB)

ISO
      Low Mid Top
CMP124DC 1.2 4.4-5.0 32.0 32.6 33.1 3.7 40 1.2 58 45
CMP126WDC 1.2 5.925-7.125 34.9 35.7 36.5 2.7 40 1.15 61 45
CMP127WDC 1.2 7.125-8.5 36.5 37.3 38.0 2.2 40 1.15 63 45
CMP1210WDC 1.2 10-11.7 39.6 40.2 40.8 1.6 40 1.15 65 45
CMP1213WDC 1.2 12.2-13.25 41.6 41.7 41.9 1.3 40 1.15 66 45
CMP1215DC 1.2 14.4-15.35 42.6 42.9 43.2 1.1 40 1.15 66 45





Mechanical performance:



Diameter of Mounting Pole Φ114 mm
Fine Azimuth Adjustment Coarse 360° Fine ±15°
Fine Elevation Adjustment Fine ±10°
Wind Velocity Operational 180km/h
Wind Velocity Survival 200km/h
Ice-load 25.4 mm
Operational Temperature

-55~ +70℃
