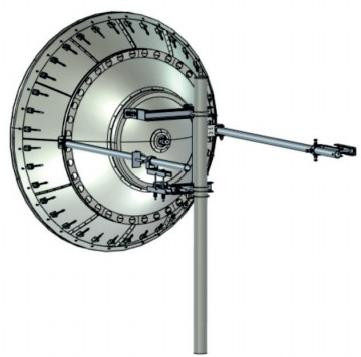

1.8m/6ft High XPD Performance Dual Polarized XPD Antenna

1.8m/6ft High XPD Performance Dual Polarized XPD Antenna

MOQ: 1 SET
Price: Negotiable
Standard Packaging: Standard export packaging/customizable packaging
Payment Method: T/T , L/C
Detail Information
Place of Origin
China
Brand Name
Famous
Certification
CE,ISO9001
Model Number
XPD Antenna
Name:
XPD Antenna
Diameter Of Mounting Pole:
φ114 Mm
Fine Azimuth Adjustment:
Coarse 360°Fine±5°
Fine Elevation Adjustment:
Fine±5°
Wind Velocity Operational:
180km/h
Wind Velocity Survival:
200km/h
Ice-load:
25.4 Mm
Operational Temperature:
-55~+70℃
Minimum Order Quantity:
1 SET
Price:
Negotiable
Packaging Details:
Standard export packaging/customizable packaging
Payment Terms:
T/T , L/C
Highlight:

1.8m XPD Antenna

,

Dual Polarized XPD Antenna

,

6ft Microwave Parabolic Antenna

Product Description

1.8m/6ft High XPD Performance Dual-Polarized Microwave Parabolic Antenna



- Our patent split-lobe microwave communication parabolic antenna for large diameter, which can save packaging and transportation costs greatly without any quality compromised;

- High performance ultra high XPD parabolic antennas – Excellent performance for a wide range of applications;

- Simple Assembly – Minimal required assembly simplifies installation on site and guarantees “factory-tested” quality;

- Our patent split-lobe microwave communication parabolic antenna for large diameter, which can save packaging and transportation costs greatly without any quality compromised;

- High performance ultra high XPD parabolic antennas – Excellent performance for a wide range of applications;

- Simple Assembly – Minimal required assembly simplifies installation on site and guarantees “factory-tested” quality;



Electrical performance:





Antenna Model



Antenna

Size(m/ft)



Frequency (GHz)

Gain(dBi)



3dB BW (degs)



XPD

(dB)



VSWR



F/B radio (dB)



ISO

Low Mid Top
CMP183DB 1.8m/6ft 3.6-4.2 33.8 34.8 35.3 3.1 33 1.15 60 38
CMP184DB 1.8m/6ft 4.4-5.0 35.7 36.3 36.8 2.6 33 1.15 61 38
CMP186WDB 1.8m/6ft 5.925-7.125 38.4 39.4 39.8 1.8 33 1.1 65 38
CMP187WDB 1.8m/6ft 7.125-8.5 40.0 40.8 41.5 1.5 33 1.1 66 38
CMP1810WDB 1.8m/6ft 10-11.7 43.0 43.7 44.3 1.1 33 1.1 69 38
CMP1813WDB 1.8m/6ft 12.2-13.25 45.0 45.2 45.3 0.9 33 1.1 70 38
CMP1815DB 1.8m/6ft 14.4-15.35 46.1 46.3 46.6 0.8 33 1.1 71 38



Mechanical performance:



Diameter of Mounting Pole



Φ114 mm

Fine Azimuth Adjustment

Coarse 360°  Fine ±5°

Fine Elevation Adjustment

Fine ±5°

Wind Velocity Operational

180km/h

Wind Velocity Survival

200km/h

Ice-load

25.4 mm

Operational Temperature

-55~ +70℃



1.The low/mid/high gain has≤-0.5dBi tolerance is within the normal range;

2.F/Bradio:Denotes highest radiation relative to the main beam,at 180°±40°,across the band.Production antennas do not exceed rated values by more than 2 dB unless stated otherwise;
