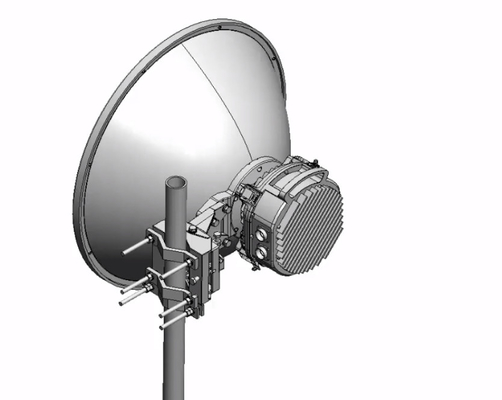

2.4m/8ft High XPD Dual Polarized Microwave Parabolic Antenna 5 Ghz

2.4m/8ft High XPD Dual Polarized Microwave Parabolic Antenna 5 Ghz

MOQ: 1 SET
Price: Negotiable
Standard Packaging: Standard export packaging/customizable packaging
Payment Method: T/T , L/C
Detail Information
Place of Origin
China
Brand Name
Famous
Certification
CE,ISO9001
Model Number
XPD Antenna
Diameter Of Mounting Pole:
φ114 Mm
Fine Azimuth Adjustment:
Coarse 360°Fine±5°
Fine Elevation Adjustment:
Fine±5°
Wind Velocity Operational:
180km/h
Wind Velocity Survival:
200km/h
Operational Temperature:
-55~+70℃
Minimum Order Quantity:
1 SET
Price:
Negotiable
Packaging Details:
Standard export packaging/customizable packaging
Payment Terms:
T/T , L/C
Highlight:

Dual Polarized High XPD Antenna

,

2.4m Parabolic Antenna 5 Ghz

,

8ft Microwave Parabolic Antenna

Product Description

2.4m/8ft High XPD Dual-Polarized Microwave Parabolic Antenna



The XPD Antenna, short for Cross-Polarization Discrimination Antenna, is a specialized type of antenna known for its ability to reduce interference and improve signal clarity by minimizing cross-polarization interference. This type of antenna is designed to separate and distinguish between vertically and horizontally polarized signals, allowing for better discrimination and isolation of desired signals while rejecting unwanted interference.



- Our patent split-lobe microwave communication parabolic antenna for large diameter, which can save packaging and transportation costs greatly without any quality compromised;

- High performance ultra high XPD parabolic antennas – Excellent performance for a wide range of applications;

- Simple Assembly – Minimal required assembly simplifies installation on site and guarantees “factory-tested” quality;



Electrical performance:





Antenna Model



Antenna

Size(m/ft)



Frequency (GHz)

Gain(dBi)



3dB BW (degs)



XPD

(dB)



VSWR



F/B radio (dB)



ISO

Low Mid Top
CMP243DB 2.4m/8ft 3.6-4.2 36.1 37.3 38 2.4 33 1.15 62 38
CMP244DB 2.4m/8ft 4.4-5.0 38.0 38.8 39.3 2.0 33 1.15 63 38
CMP246WDB 2.4m/8ft 5.925-7.125 40.8 41.7 42.5 1.4 33 1.1 67 38
CMP247WDB 2.4m/8ft 7.125-8.5 42.5 43.3 44.0 1.1 33 1.1 69 38
CMP2410WDB 2.4m/8ft 10-11.7 45.5 46.1 46.8 0.8 33 1.1 71 38
CMP2413WDB 2.4m/8ft 12.2-13.25 47.5 47.7 47.9 0.7 33 1.1 72 38
CMP2415DB 2.4m/8ft 14.4-15.35 48.6 48.8 49.1 0.6 33 1.1 74 38



Mechanical performance:



Diameter of Mounting Pole φ114 mm
Fine Azimuth Adjustment Coarse 360°Fine±5°
Fine Elevation Adjustment Fine±5°
Wind Velocity Operational 180km/h
Wind Velocity Survival 200km/h
Ice-load 25.4 mm
Operational Temperature -55~+70℃



1.The low/mid/high gain has≤-0.5dBi tolerance is within the normal range;

2.F/Bradio:Denotes highest radiation relative to the main beam,at 180°±40°,across the band.Production antennas do not exceed rated values by more than 2 dB unless stated otherwise;
