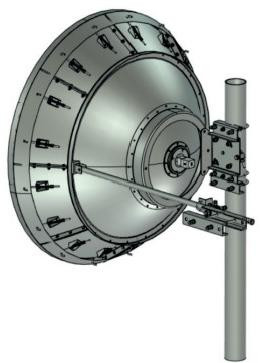

1.2m/4ft Standard Performance Dual Polarized Microwave Parabolic Antenna

1.2m/4ft Standard Performance Dual Polarized Microwave Parabolic Antenna

MOQ: 1 SET
Price: Negotiable
Standard Packaging: Standard export packaging/customizable packaging
Payment Method: T/T , L/C
Detail Information
Place of Origin
China
Brand Name
Famous
Certification
CE,ISO9001
Model Number
XPD Antenna
Name:
Microwave Antenna
Diameter Of Mounting Pole:
Φ114 Mm
Fine Azimuth Adjustment:
Coarse 360° Fine ±15°
Fine Elevation Adjustment:
Fine ±10°
Wind Velocity Operational:
180km/h
Wind Velocity Survival:
200km/h
Ice-load:
25.4 Mm
Operational Temperature:
-55~ +70℃
Minimum Order Quantity:
1 SET
Price:
Negotiable
Packaging Details:
Standard export packaging/customizable packaging
Payment Terms:
T/T , L/C
Highlight:

34 dbi parabolic antenna 1.2m

,

32 dbi parabolic antenna 4ft

,

XPD 1.2m Microwave Parabolic Antenna

Product Description



1.2m/4ft Standard Performance Dual-Polarized Microwave Parabolic Antenna

  • Our patent split-lobe microwave communication parabolic antenna for large diameter, which can save packaging and transportation costs greatly without any quality compromised;
  •  High performance ultra high XPD parabolic antennas – Excellent performance for a wide range of applications;
  • Simple Assembly – Minimal required assembly simplifies installation on site and guarantees “factory-tested” quality;



Electrical performance:





Antenna Model



Antenna Size(m/ft



Frequency (GHZ

Gain(dBi)



3dB BW (degs



XPD

(dB)



VSWR



F/B radio dB)



ISO

Low Mid Top
CMP124DA 1.2m/4ft 4.4-5.0 32.0 32.6 33.1 3.7 30 1.2 58 35
CMP126WDA 1.2m/4ft 5.925-7.125 34.9 35.7 36.5 2.7 30 1.15 61 35
CMP127WDA 1.2m/4ft 7.125-8.5 36.5 37.3 38.0 2.2 30 1.15 63 35
CMP1210WDA 1.2m/4ft 10-11.7 39.6 40.2 40.8 1.6 30 1.15 65 35
CMP1213WDA 1.2m/4ft 12.2-13.25 41.6 41.7 41.9 1.3 30 1.15 66 35
CMP1215DA 1.2m/4ft 14.4-15.35 42.6 42.9 43.2 1.1 30 1.15 66 35



Mechanical performance:



Diameter of Mounting Pole Φ114 mm
Fine Azimuth Adjustment Coarse 360° Fine ±15°
Fine Elevation Adjustment Fine ±10°
Wind Velocity Operational 180km/h
Wind Velocity Survival 200km/h
Ice-load 25.4 mm
Operational Temperature

-55~ +70℃



1.The low/mid/high gain has≤-0.5dBi tolerance is within the normal range;

2.F/Bradio:Denotes highest radiation relative to the main beam,at 180°±40°,across the band.Production antennas do not exceed rated values by more than 2 dB unless stated otherwise;
