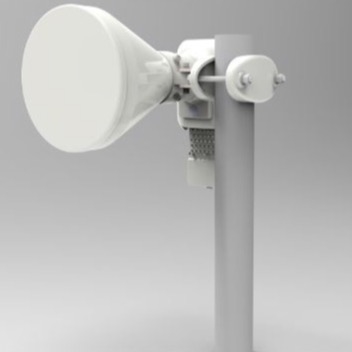

Efficient PTMP 16 DBi Symmetrical Horn Antenna Aluminum Alloy

Efficient PTMP 16 DBi Symmetrical Horn Antenna Aluminum Alloy

MOQ: 1 SET
Price: Negotiable
Standard Packaging: Standard export packaging/customizable packaging
Payment Method: T/T , L/C
Detail Information
Place of Origin
China
Brand Name
Famous
Certification
CE,ISO9001
Minimum Order Quantity:
1 SET
Price:
Negotiable
Packaging Details:
Standard export packaging/customizable packaging
Payment Terms:
T/T , L/C
Highlight:

16 DBi Symmetrical Horn Antenna

,

Efficient PTMP Symmetrical Horn Antenna

,

Aluminum Alloy Symmetrical Horn Antenna

Product Description



Efficient PtMP horn antenna:

-Wide frequency range 5.0-7.0GHz;

-High isolation: 30° ;

-With fast and easy installation waveguide;

-High Gain;


  •



Efficient PtMP horn antenna:

-Wide frequency range 5.0-7.0GHz;

-High isolation: 30° ;

-With fast and easy installation waveguide;

-High Gain;


  •

Electrical performance:





Frequency Range (GHz)



Gain (dBi)

Azimuth Beam Width -3dB

Elevation Beam Width -3dB

Azimuth Beam Width -6dB

Elevation Beam Width -6dB

Front/Back Ratio(dB)

VSWR

Polarization

30°

5.0-7.0

18

H21°

V21°

H21°

V21°

H30°

V30°

H30°

V30°

37

≤1.8

Dual-Linear

40°

5.0-7.0

16

H27°

V27°

H27°

V27

H40°

V40°

H40°

V40°

35

≤1.8

Dual-Linear

50°

5.0-7.0

14

H33°

V33°

H33°

V33°

H50°

V50°

H50°

V50°

33

≤1.8

Dual-Linear

60°

5.0-7.0

13

H41°

V41°

H41°

V41°

H60°

V60°

H60°

V60°

32

≤1.8

Dual-Linear

70°

5.0-7.0

11

H50°

V50°

H50°

V50°

H70°

V70°

H70°

V70°

30

≤1.8

Dual-Linear

80°

5.0-7.0

10

H60°

V60°

H60°

V60°

H80°

V80°

H80°

V80°

29

≤1.8

Dual-Linear

90°

5.0-7.0

9

H67°

V67°

H67°

V67°

H90°

V90°

H90°

V90°

28

≤1.8

Dual-Linear

Antenna Connection

Waveguide (special made by Dongguan Famous Precision) or SMA

Net Weight

2.5kgs/5.5Ib

Material

UV stabilized PC, aluminum alloy

Wind survivability

200 km/h

Wind loading

200 km/h

Mounting

Mechanical adjustment: ±25° elevation, ±25° azimuth
Pole compatibility: Ø40 to 60 mm

Weatherproofing

IP55
