High Performance Microwave Horn Antenna For Communication Needs

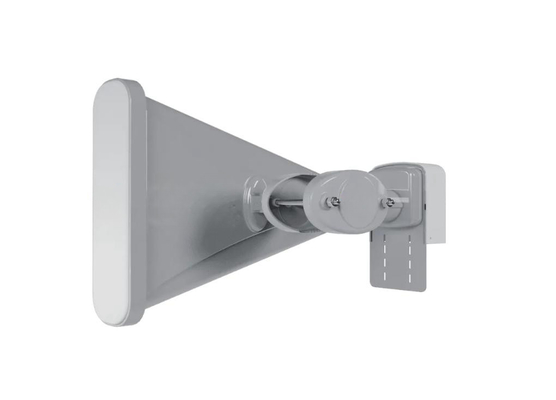

High Performance Microwave Horn Antenna For Communication Needs

MOQ: 1 SET
Price: Negotiable
Standard Packaging: Standard export packaging/customizable packaging
Payment Method: T/T , L/C
Detail Information
Place of Origin
China
Brand Name
Famous
Certification
CE,ISO9001
Model Number
Horn Antenna
Name:
Symmetrical Horn Antenna
Frequency Range:
4900-7200 MHz
Gain:
18 DBi
Azimuth Beam Width:
90°
Elevation Beam Width:
25°
Front-to-Back Ratio:
40 DB
Isolation:
>30 DB
VSWR Max:
1.6
Connector:
RP-SMA Male Pigtails
Minimum Order Quantity:
1 SET
Price:
Negotiable
Packaging Details:
Standard export packaging/customizable packaging
Payment Terms:
T/T , L/C
Highlight:

High Performance Microwave Horn Antenna

,

Microwave Horn Antenna For Communication Needs

,

4900-7200 MHz Symmetrical Horn Antenna

Product Description

High-Performance Microwave Horn Antenna For Communication Needs


Application



  • Communication Systems: Symmetrical Horn Antennas are commonly used in wireless communication systems such as Wi-Fi networks, cellular mobile communication networks (e.g., 4G, 5G), and microwave communication systems. They can be used for data transmission, voice communication, video streaming, and other communication needs.
  • Radar Systems: In radar systems, Symmetrical Horn Antennas are utilized for transmitting and receiving radar signals. They find extensive use in aviation, maritime, military, and meteorological radar systems.
  • Wireless Sensor Networks: Symmetrical Horn Antennas are suitable for various wireless sensor networks (WSNs) used in applications such as environmental monitoring, smart home systems, industrial automation, etc. They facilitate effective data communication and information exchange between sensor nodes.
  • Satellite Communication: Symmetrical Horn Antennas are also employed in satellite communication systems, including ground stations and satellite communication terminals. They provide stable and efficient satellite signal reception and transmission capabilities.
  • RF Testing and Measurement: In the field of RF testing and measurement, Symmetrical Horn Antennas are used to assess device performance, measure signal strength and quality, and perform RF spectrum analysis.
  • Wireless Video Transmission: Symmetrical Horn Antennas are also used in wireless video transmission systems such as surveillance cameras, video conferencing systems, and broadcasting TV systems. They ensure stable and high-quality video signal transmission.



Name: Symmetrical Horn Antenna Frequency Range: 4900-7200 MHz
Gain: 18 DBi Azimuth Beam Width: 90°
Elevation Beam Width: 25° Front-to-Back Ratio: 40 DB
Isolation: >30 DB VSWR Max: 1.6
Connector: RP-SMA Male Pigtails

High Performance Microwave Horn Antenna For Communication Needs 0High Performance Microwave Horn Antenna For Communication Needs 1High Performance Microwave Horn Antenna For Communication Needs 2High Performance Microwave Horn Antenna For Communication Needs 3High Performance Microwave Horn Antenna For Communication Needs 4High Performance Microwave Horn Antenna For Communication Needs 5High Performance Microwave Horn Antenna For Communication Needs 6High Performance Microwave Horn Antenna For Communication Needs 7
