High Gain Microwave Horn Antenna For Wireless Ptmp Communication
  • name

High Gain Microwave Horn Antenna For Wireless Ptmp Communication

MOQ: 1 SET
Price: Negotiable
Standard Packaging: Standard export packaging/customizable packaging
Payment Method: T/T ， L/C
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Famous
Certification
CE，ISO9001
Model Number
Horn Antenna
Document
Product Brochure PDF
Name:
Symmetrical Horn Antenna
Diameter Of Mounting Pole:
Φ51~Φ114 Mm
Antenna Connection:
Waveguide (special Made By Dongguan Famous Precision) Or SMA
Net Weight:
2.5kgs/5.5Ib
Material:
UV Stabilized PC, Aluminum Alloy
Wind Survivability:
200 Km/h
Wind Loading:
200 Km/h
Mechanical Adjustment::
±25° Elevation, ±25° Azimuth
Pole Compatibility:
Ø40 To 60 Mm
Weatherproofing:
IP55
Minimum Order Quantity:
1 SET
Price:
Negotiable
Packaging Details:
Standard export packaging/customizable packaging
Payment Terms:
T/T ， L/C
Highlight:

wireless ptmp communication microwave horn antenna

,

microwave horn antenna high gain

,

high gain horn antenna in microwave

Product Description

High Gain Microwave Horn Antenna for Wireless PtMP Communication



A Microwave Horn Antenna is a type of antenna used for transmitting and receiving microwave signals. It consists of a flared waveguide structure that gradually expands from a narrow aperture to a wider opening. This design allows the antenna to efficiently radiate or capture electromagnetic waves in the microwave frequency range.

One advantage of Microwave Horn Antennas is their wide bandwidth capability, allowing them to operate over a range of frequencies within the microwave spectrum. This makes them suitable for various applications, including radar systems, satellite communications, wireless networks, and scientific research.





Efficient PtMP horn antenna:



  • Wide frequency range 5.0-7.0GHz;
  • High isolation: 30° ;
  • With fast and easy installation waveguide;
  • High Gain;




Electrical performance:





Frequency Range (GHz)



 Gain (dBi) Azimuth Beam Width -3dB Elevation Beam Width -3dB Azimuth Beam Width -6dB Elevation Beam Width -6dB Front/Back Ratio(dB) VSWR Polarization
30° 5.0-7.0 18

H21°

V21°

H21°

V21°

H30°

V30°

H30°

V30°

 37 ≤1.8 Dual-Linear
40° 5.0-7.0 16

H27°

V27°

H27°

V27

H40°

V40°

H40°

V40°

 35 ≤1.8 Dual-Linear
50° 5.0-7.0 14

H33°

V33°

H33°

V33°

H50°

V50°

H50°

V50°

 33 ≤1.8 Dual-Linear
60° 5.0-7.0 13

H41°

V41°

H41°

V41°

H60°

V60°

H60°

V60°

 32 ≤1.8 Dual-Linear
70° 5.0-7.0 11

H50°

V50°

H50°

V50°

H70°

V70°

H70°

V70°

 30 ≤1.8 Dual-Linear
80° 5.0-7.0 10

H60°

V60°

H60°

V60°

H80°

V80°

H80°

V80°

 29 ≤1.8 Dual-Linear
90° 5.0-7.0 9

H67°

V67°

H67°

V67°

H90°

V90°

H90°

V90°

 28 ≤1.8 Dual-Linear
Antenna Connection Waveguide (special made by Dongguan Famous Precision) or SMA
Net Weight 2.5kgs/5.5Ib
Material UV stabilized PC, aluminum alloy
Wind survivability 200 km/h
Wind loading 200 km/h
Mounting Mechanical adjustment: ±25° elevation, ±25° azimuth
Pole compatibility: Ø40 to 60 mm
Weatherproofing IP55

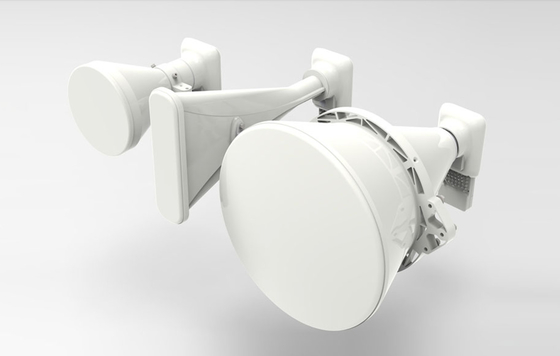

High Gain Microwave Horn Antenna For Wireless Ptmp Communication 0
