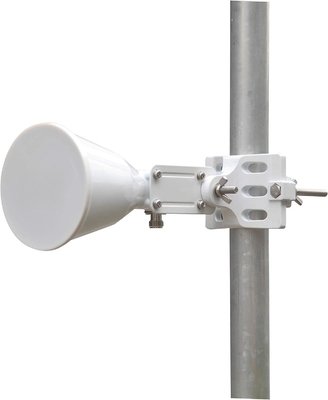

Horn Antenna 5GHz 18dBi Dual Polarization For WISP

Horn Antenna 5GHz 18dBi Dual Polarization For WISP

MOQ: 1 SET
Price: Negotiable
Standard Packaging: Standard export packaging/customizable packaging
Payment Method: T/T , L/C
Detail Information
Place of Origin
China
Brand Name
Famous
Certification
CE,ISO9001
Model Number
Horn Antenna
Name:
Symmetrical Horn Antenna
Diameter Of Mounting Pole:
Φ51~Φ114 Mm
Antenna Connection:
Waveguide (special Made By Dongguan Famous Precision) Or SMA
Net Weight:
2.5kgs/5.5Ib
Material:
UV Stabilized PC, Aluminum Alloy
Wind Survivability:
200 Km/h
Wind Loading:
200 Km/h
Mechanical Adjustment::
±25° Elevation, ±25° Azimuth
Pole Compatibility:
Ø40 To 60 Mm
Weatherproofing:
IP55
Minimum Order Quantity:
1 SET
Price:
Negotiable
Packaging Details:
Standard export packaging/customizable packaging
Payment Terms:
T/T , L/C
Highlight:

Horn Antenna 5GHz 18dBi

,

Dual Polarization Horn Antenna

,

WISP microwave horn antenna

Product Description

Horn Antenna 5GHz 18dBi Dual Polarization For WISP



  • Aluminum Die Casting Horn and Bracket
  • Noise rejection and isolation band reuse
  • Easy to amount, easy to adjust antenna elevation angle
  • Small size, light weight, less wind load, need less space on Tower
  • Include two pigtail cable assembly, N male to RPSMA



Electrical performance:





Frequency Range (GHz)



Gain (dBi) Azimuth Beam Width -3dB Elevation Beam Width -3dB Azimuth Beam Width -6dB Elevation Beam Width -6dB Front/Back Ratio(dB) VSWR Polarization
30° 5.0-7.0 18

H21°

V21°

H21°

V21°

H30°

V30°

H30°

V30°

37 ≤1.8 Dual-Linear
40° 5.0-7.0 16

H27°

V27°

H27°

V27

H40°

V40°

H40°

V40°

35 ≤1.8 Dual-Linear
50° 5.0-7.0 14

H33°

V33°

H33°

V33°

H50°

V50°

H50°

V50°

33 ≤1.8 Dual-Linear
60° 5.0-7.0 13

H41°

V41°

H41°

V41°

H60°

V60°

H60°

V60°

32 ≤1.8 Dual-Linear
70° 5.0-7.0 11

H50°

V50°

H50°

V50°

H70°

V70°

H70°

V70°

30 ≤1.8 Dual-Linear
80° 5.0-7.0 10

H60°

V60°

H60°

V60°

H80°

V80°

H80°

V80°

29 ≤1.8 Dual-Linear
90° 5.0-7.0 9

H67°

V67°

H67°

V67°

H90°

V90°

H90°

V90°

28 ≤1.8 Dual-Linear
Antenna Connection Waveguide (special made by Dongguan Famous Precision) or SMA
Net Weight 2.5kgs/5.5Ib
Material UV stabilized PC, aluminum alloy
Wind survivability 200 km/h
Wind loading 200 km/h
Mounting Mechanical adjustment: ±25° elevation, ±25° azimuth
Pole compatibility: Ø40 to 60 mm
Weatherproofing IP55



Horn Antenna 5GHz 18dBi Dual Polarization For WISP 0Horn Antenna 5GHz 18dBi Dual Polarization For WISP 1
