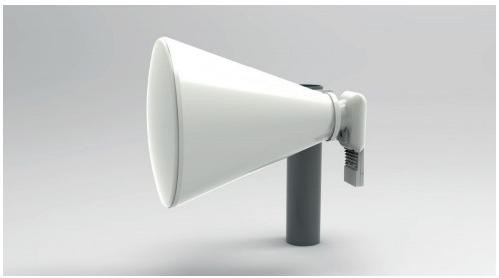

IP55 Grade Waveguide 24db Horn Antenna In Microwave
  • name
  • name

IP55 Grade Waveguide 24db Horn Antenna In Microwave

MOQ: 1 SET
Price: Negotiable
Standard Packaging: Standard export packaging/customizable packaging
Payment Method: T/T ， L/C
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Famous
Certification
CE，ISO9001
Model Number
24dB Horn Antenna
Document
Product Brochure PDF
Name:
24dB Horn Antenna
Antenna Connection:
Waveguide (special Made By Dongguan Famous Precision) Or SMA
Net Weight:
9kgs/19.8Ib
Material:
UV Stabilized PC,aluminum Alloy
Wind Survivability:
200 Km/h
Wind Loading:
90N At 200 Km/h
Mounting:
Mechanical Adjustment:±25°elevation,±25°azimuth
Pole Compatibility:
Ø40 To 60 Mm
Weatherproofing:
IP55
Minimum Order Quantity:
1 SET
Price:
Negotiable
Packaging Details:
Standard export packaging/customizable packaging
Payment Terms:
T/T ， L/C
Highlight:

24db microwave horn antenna

,

IP55 microwave horn

,

24db horn antenna in microwave

Product Description

24dB Horn Antenna







Frequency

Range (GHz)



Gain (dBi)

Azimuth

Beam

Width -3dB

Elevation

Beam

Width -3dB

Azimuth

Beam

Width -6dB

Elevation

Beam

Width -6dB

Front/Back

Ratio(dB



VSWR



Polarization
5.0-7.0 24

H11°

V11°

H11°

V11°

H16°

V15°

H16°

V15°

 40 ≤1.8 Dual Linear



Antenna Connection Waveguide (special made by Dongguan Famous Precision)or SMA
Net Weight 9kgs/19.8Ib
Material UV stabilized PC,aluminum alloy
Wind survivability 200 km/h
Wind loading 90N at 200 km/h
Mounting Mechanical adjustment:±25°elevation,±25°azimuth
Pole compatibility:040 to 60 mm -55~+70℃
Weatherproofing IP55







Tags:

IP55 microwave horn,

Dual Polarization Horn Antenna,

5GHz-7GHz microwave horn antenna
