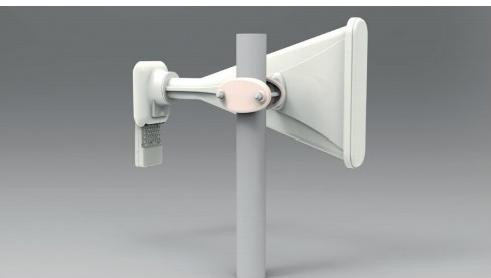

124MPH Asymmetrical Horn Antenna 16 DBI 17 DBI 20 DBI

124MPH Asymmetrical Horn Antenna 16 DBI 17 DBI 20 DBI

MOQ: 1 SET
Price: Negotiable
Standard Packaging: Standard export packaging/customizable packaging
Payment Method: T/T , L/C
Detail Information
Place of Origin
China
Brand Name
Famous
Certification
CE,ISO9001
Model Number
Horn Antenna
Name:
Asymmetrical Horn Antenna
Antenna Connection:
Waveguide (special Made By Dongguan Famous Precision) Or SMA
Net Weight:
3kgs/6.6lb
Material:
UV Stabilized PC, Aluminum Alloy
Wind Survivability:
200 Km/h(124mph)
Wind Loading:
200 Km/h
Mechanical Adjustment::
±25° Elevation, ±25° Azimuth
Pole Compatibility:
Ø40 To 60 Mm
Weatherproofing:
IP55
Minimum Order Quantity:
1 SET
Price:
Negotiable
Packaging Details:
Standard export packaging/customizable packaging
Payment Terms:
T/T , L/C
Highlight:

124MPH Asymmetrical Horn Antenna

,

20 DBI Asymmetrical Horn Antenna

,

17 DBI Microwave Horn Antenna

Product Description

Asymmetrical Horn Antenna




Frequency
Range (GHz)

Gain
(dBi)

Azimuth
Beam
Width -3dB

Flevation
Beam
Width -3dB

Azimuth
Beam
Width-6dB

Elevation
Beam
Width-6dB

Front/Back Ratio(dB)


VSWR


Polarization

30° 5.0-7.0 20

H21°
V21°

H15°
V15°

H30°
V30

H20°
V20°

35 ≤1.8 Dual-Linear
60°


5.0-7.0

17

H45°
V42°

H17°
V16°

H60°
V60°

H25°
V25°

27 ≤1.8 Dual-Linear
90° 5.0-7.0 16

H60°
V60°

H16°
V16°

H90°
V90°

H25°
V25°

30 ≤1.8 Dual-Linear



Antenna Connection Waveguide (special made by Dongguan Famous Precision)or SMA
Net Weight 3kgs/6.6lb
Materia UV stabilized PC,aluminum alloy
Wind survivability 200 km/h(124mph)
Wind loading 200 km/h
Mechanical adjustment ±25°elevation,±25°azimuth
Pole compatibility: Ø40 to 60 mm
Weatherproofing IP55
