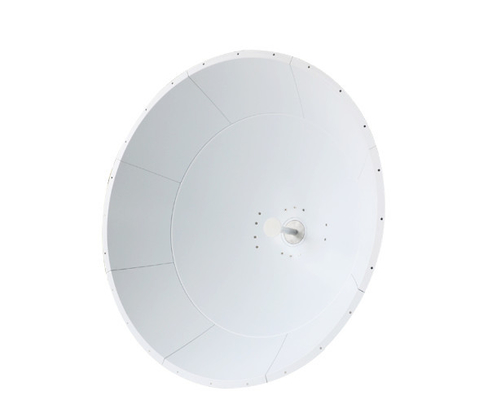

1.2m/4ft High XPD Microwave Parabolic Antenna 32 Dbi

1.2m/4ft High XPD Microwave Parabolic Antenna 32 Dbi

MOQ: 1 SET
Price: Negotiable
Standard Packaging: Standard export packaging/customizable packaging
Payment Method: T/T , L/C
Detail Information
Place of Origin
China
Brand Name
Famous
Certification
CE,ISO9001
Model Number
XPD Antenna
Name:
Microwave Antenna
Minimum Order Quantity:
1 SET
Price:
Negotiable
Packaging Details:
Standard export packaging/customizable packaging
Payment Terms:
T/T , L/C
Highlight:

1.2 meter parabolic antenna

,

32 dbi parabolic antenna

,

4ft Microwave Parabolic Antenna

Product Description

1.2m/4ft High XPD Performance Dual-Polarized Microwave Parabolic Antenna Specification



  • Our patent split-lobe microwave communication parabolic antenna for large diameter, which can save packaging and transportation costs greatly without any quality compromised;
  •  High performance ultra high XPD parabolic antennas – Excellent performance for a wide range of applications;
  • Simple Assembly – Minimal required assembly simplifies installation on site and guarantees “factory-tested” quality;



Electrical performance:



Antenna Model



Antenna

Size(m/ft)



Frequency

(GHz)

Gain(dBi)



3dB BW (degs)



XPD

(dB)



VSWR



F/B radio (dB)



ISO

LoW Mid Top
CMP124DB 1.2m/4ft 4.4-5.0 32.0 32.6 33.1 3.7 33 1.2 58 38
CMP126WDB 1.2m/4ft 5.925-7.125 34.9 35.7 36.5 2.7 33 1.15 61 38
CMP127WDB 1.2m/4ft 7.125-8.5 36.5 37.3 38.0 2.2 33 1.15 63 38
CMP1210WDB 1.2m/4ft 10-11.7 39.6 40.2 40.8 1.6 33 1.15 65 38
CMP1213WDB 1.2m/4ft 12.2-13.25 41.6 41.7 41.9 1.3 33 1.15 66 38
CMP1215DB 1.2m/4ft 14.4-15.35 42.6 42.9 43.2 1.1 33 1.15 66 38





Mechanical performance:



Diameter of Mounting Pole Φ114 mm
Fine Azimuth Adjustment Coarse 360° Fine ±15°
Fine Elevation Adjustment Fine ±10°
Wind Velocity Operational 180km/h
Wind Velocity Survival 200km/h
Ice-load 25.4 mm
Operational Temperature

-55~ +70℃



1.The low/mid/high gain has≤-0.5dBi tolerance is within the normal range;

2.F/Bradio:Denotes highest radiation relative to the main beam,at 180°±40°,across the band.Production antennas do not exceed rated values by more than 2 dB unless stated otherwise;
