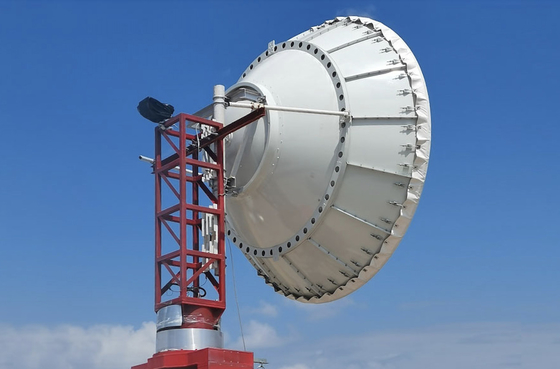

2.4m / 8ft Standard Dual Polarized Microwave Parabolic Antenna

2.4m / 8ft Standard Dual Polarized Microwave Parabolic Antenna

MOQ: 1 SET
Price: Negotiable
Standard Packaging: Standard export packaging/customizable packaging
Payment Method: T/T , L/C
Detail Information
Place of Origin
China
Brand Name
Famous
Certification
CE,ISO9001
Model Number
XPD Antenna
Diameter Of Mounting Pole:
φ114 Mm
Fine Azimuth Adjustment:
Coarse 360°Fine±5°
Fine Elevation Adjustment:
Fine±5°
Wind Velocity Operational:
180km/h
Wind Velocity Survival:
200km/h
Operational Temperature:
-55~+70℃
Minimum Order Quantity:
1 SET
Price:
Negotiable
Packaging Details:
Standard export packaging/customizable packaging
Payment Terms:
T/T , L/C
Highlight:

2.4m Microwave Parabolic Antenna

,

Dual Polarized Microwave Parabolic Antenna

,

8ft Dual Parabolic Antenna

Product Description

2.4m/8ft Standard Dual-Polarized Microwave Parabolic Antenna



- Our patent split-lobe microwave communication parabolic antenna for large diameter, which can save packaging and transportation costs greatly without any quality compromised;

- High performance ultra high XPD parabolic antennas – Excellent performance for a wide range of applications;

- Simple Assembly – Minimal required assembly simplifies installation on site and guarantees “factory-tested” quality;



Electrical performance:





Antenna Model



Antenna Size(m/ft



Frequency (GHZ

Gain(dBi)



3dB BW (degs



XPD

(dB)



VSWR



F/B radio dB)



ISO

Low Mid Top
CMP243DA 2.4m/8ft 3.6-4.2 36.1 37.3 38 2.4 30 1.15 62 35
CMP244DA 2.4m/8ft 4.4-5.0 38.0 38.8 39.3 2.0 30 1.15 63 35
CMP246WDA 2.4m/8ft 5.925-7.125 40.8 41.7 42.5 1.4 30 1.1 67 35
CMP247WDA 2.4m/8ft 7.125-8.5 42.5 43.3 44.0 1.1 30 1.1 69 35
CMP2410WDA 2.4m/8ft 10-11.7 45.5 46.1 46.8 0.8 30 1.1 71 35
CMP2413WDA 2.4m/8ft 12.2-13.25 47.5 47.7 47.9 0.7 30 1.1 72 35
CMP2415DA 2.4m/8ft 14.4-15.35 48.6 48.8 49.1 0.6 30 1.1 74 35



Mechanical performance:



Diameter of Mounting Pole φ114 mm
Fine Azimuth Adjustment Coarse 360°Fine±5°
Fine Elevation Adjustment Fine±5°
Wind Velocity Operational 180km/h
Wind Velocity Survival 200km/h
Ice-load 25.4 mm
Operational Temperature -55~+70℃



1.The low/mid/high gain has≤-0.5dBi tolerance is within the normal range;

2.F/Bradio:Denotes highest radiation relative to the main beam,at 180°±40°,across the band.Production antennas do not exceed rated values by more than 2 dB unless stated otherwise;



2.4m / 8ft Standard Dual Polarized Microwave Parabolic Antenna 02.4m / 8ft Standard Dual Polarized Microwave Parabolic Antenna 1
