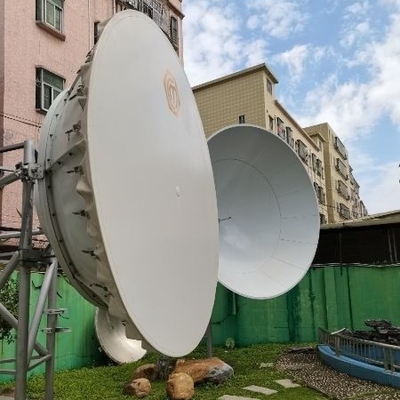

3.0m/10ft Standard Performance Dual Polarized Microwave Parabolic Antenna

3.0m/10ft Standard Performance Dual Polarized Microwave Parabolic Antenna

MOQ: 1 SET
Price: Negotiable
Standard Packaging: Standard export packaging/customizable packaging
Payment Method: T/T , L/C
Detail Information
Place of Origin
China
Brand Name
Famous
Certification
CE,ISO9001
Model Number
XPD Antenna
Diameter Of Mounting Pole:
φ114 Mm
Fine Azimuth Adjustment:
Coarse 360°Fine±5°
Fine Elevation Adjustment:
Fine±5°
Wind Velocity Operational:
180km/h
Wind Velocity Survival:
200km/h
Ice-load:
25.4 Mm
Operational Temperature:
-55~+70℃
Minimum Order Quantity:
1 SET
Price:
Negotiable
Packaging Details:
Standard export packaging/customizable packaging
Payment Terms:
T/T , L/C
Highlight:

3m Dual Parabolic Antenna

,

Microwave Dual Parabolic Antenna

,

10ft Microwave Parabolic Antenna

Product Description

3.0m/10ft standard performance dual-polarized microwave parabolic antenna



- Our patent split-lobe microwave communication parabolic antenna for large diameter, which can save packaging and transportation costs greatly without any quality compromised;

- High performance ultra high XPD parabolic antennas – Excellent performance for a wide range of applications;

- Simple Assembly – Minimal required assembly simplifies installation on site and guarantees “factory-tested” quality;



Electrical performance:





Antenna Model



Antenna Size(m/ft



Frequency (GHZ

Gain(dBi)



3dB BW (degs



XPD (dB)



VSWR



F/B radio dB)



ISO

Low Mid Top
CMP303DA 3.0m/10ft 3.6-4.2 38.3 38.9 39.5 1.9 30 1.15 64 35
CMP304DA 3.0m/10ft 4.4-5.0 40 40.6 41.1 1.5 30 1.15 65 35
CMP306WDA 3.0m/10f 5.925-7.125 42.8 43.6 44.4 1.1 30 1.1 69 35
CMP307WDA 3.0m/10ft 7.125-8.5 44.4 45.2 46.0 0.9 30 1.1 71 35
CMP3010WDA 3.0m/10ft 10-11.7 47.4 48.1 48.7 0.7 30 1.1 73 35
CMP3013WDA 3.0m/10ft 12.2-13.25 49.4 49.6 49.8 0.6 30 1.1 75 35



Mechanical performance:



Diameter of Mounting Pole

Φ114 mm

Fine Azimuth Adjustment

Coarse 360°  Fine ±5°

Fine Elevation Adjustment

Fine ±5°

Wind Velocity Operational

180km/h

Wind Velocity Survival

200km/h

Ice-load

25.4 mm

Operational Temperature

-55~ +70℃



1.The low/mid/high gain has≤-0.5dBi tolerance is within the normal range;

2.F/Bradio:Denotes highest radiation relative to the main beam,at 180°±40°,across the band.Production antennas do not exceed rated values by more than 2 dB unless stated otherwise;
